DragonFly

The ULTIMATE portable PA system.  Light, loud, long battery life, and weatherproof.   Half the size and weight of popular commercial-grade systems.  Up to eight hour full power operation from internal battery.

Want a discount? Become a member!

Opis

No fragile injection-molded construction, underpowered amplifiers, or heavy lead-acid batteries – the DragonFly redefines what’s possible in a compact all-in-one PA.

The DragonFly gives you the best possible audio in a compact and reliable design that serve for years.  Fully weatherproof, the DragonFly can easily be transported and set up by one person. As well, a molded in stand-mount socket on the bottom of the unit and inserts on the sides for yoke mounting give the DragonFly a range of deployment options.



Features


  • 122dB SPL continuous output
  • Wireless microphone built-in

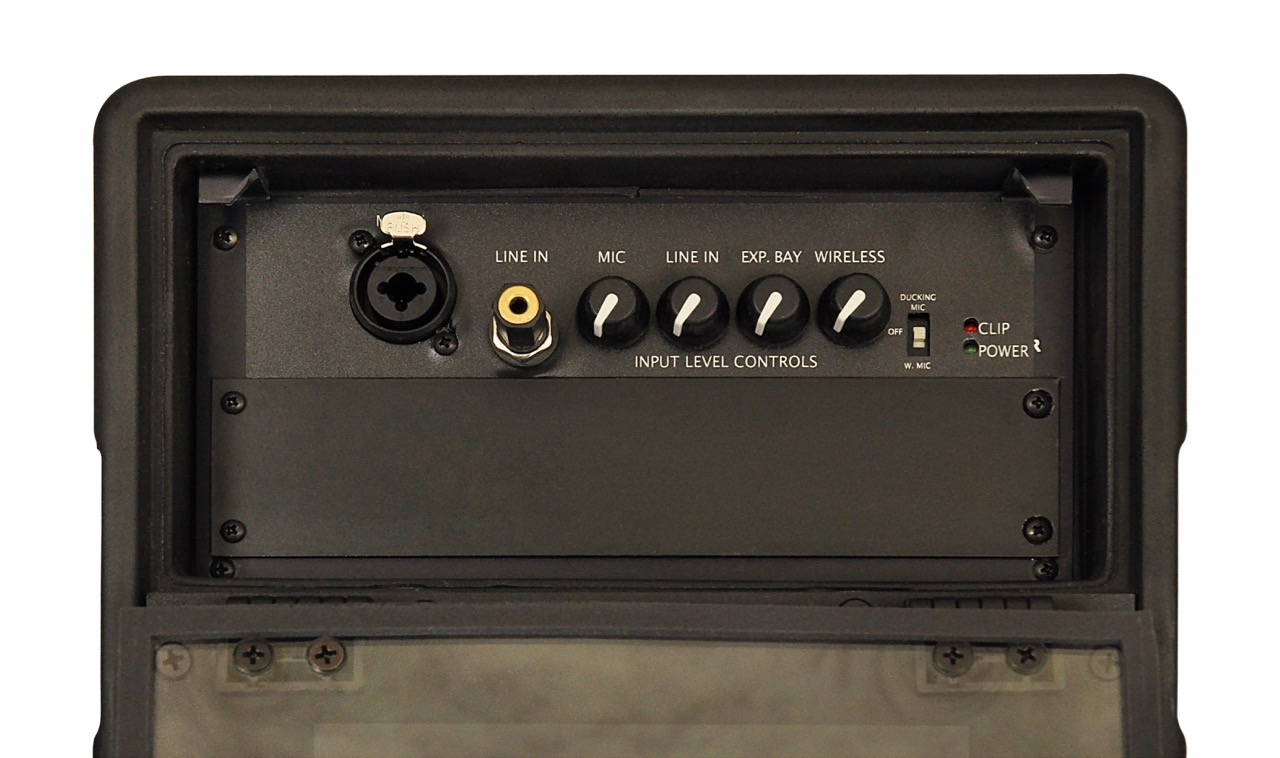

  • Mixer with microphone and line level inputs – four total – connect your phone or other audio source
  • Lightweight- just 24 lbs.
  • Small, less than 1 cubic foot
  • Fast charging, lightweight LiFePo battery pack
  • Fully weatherproof
  • NEW: switchable ducking circuit automatically turns down music when wireless or wired mic is used .
  • Can drive 2nd Auxiliary Loudspeaker
  • Full Range Neodymium coaxial transducer

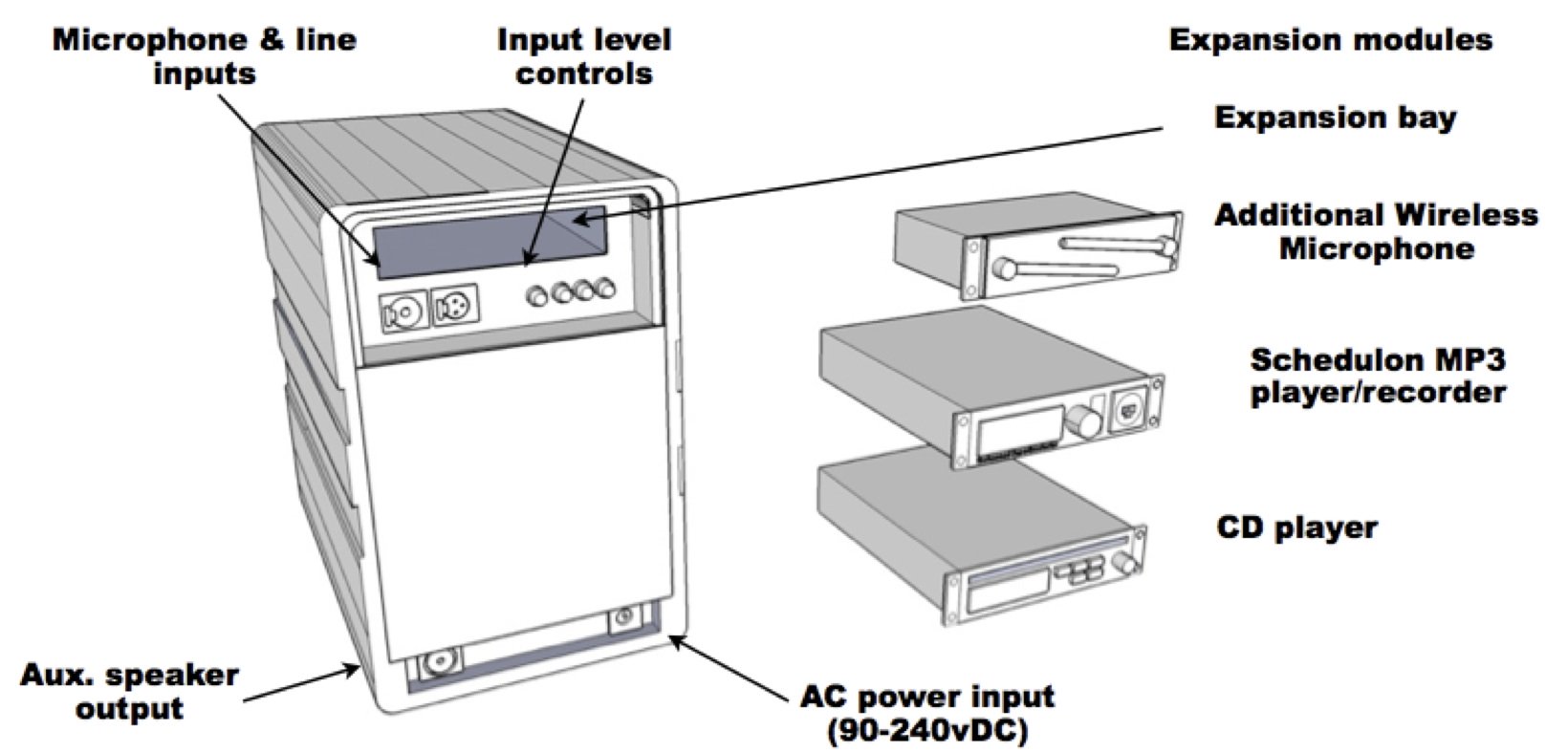

  • Expansion Slot for Schedulon MP3 player/ recorder, CD player, second wireless microphone or audio distribution module
  • Gasketed fold-down cover for mixer control surface
  • Integrated smart charger for battery pack – charge and run from 110-240 V AC power, 12-24 V CD power.

Options

  • Schedulon audio player with auto-play & recording
  • Auxiliary Loudspeaker
  • Audio Distribution Modules: Ethernet Wireless (900Mhz) / Twisted pair
  • All day battery pack (external)
  • Yoke-mount bracket
  • Additional wireless microphone
  • CD player module

Physical Specifications

  • Height  14.5 in. |  36.8 cm
  • Width   8.25 in. |  20.9 cm
  • Depth      14 in. |  35.5 cm
  • Weight    24 lb.  | 10.9 kg

Fittings

  • Rigging points: 2x 1/4-20 threaded inserts on top (handle mount points)
  •  Yoke mount points: 2 x 1/4-20 threaded inserts on side
  • Standmount socket: 1x 1.5” socket on bottom of unit Handle:
  • 1x Strap Handle

Cabinet:  LDPE, rotationally Molded Grill:  Powder-coated stainless steel


General Specifications

  • Audio Inputs:  1x XLR, mic. level 1x 1/4, line level
  •  Audio Outputs:  1x Neutrik NL4MP
  • Amplifier Wattage:  200W RMS into 8 Ohms
  • Power Inputs:  AC power (90-240vAC) DC power (12-24vDC)
  • Battery:  5AH NiMH Operational Life:   5 hours full operation 10 hours stand-by

Audio Performance Specifications

  •  Frequency Response (+/- 2 dB):  90 Hz – 18 kHz M
  •  aximum Output (long term):  121 dB SPL
  • Maximum Output (peak program): 124 dB
  • HF Dispersion:  SPL 70°V x 70°H
    Audio specifications based on ALMA EIA 426B test protocols.

Dodatkowe informacje

Marka

Technomad

Zastosowania

Instytucje kultury, Kluby muzyczne, Obiekty sportowe, Obiekty użyteczności publicznej, Rental
