Opis
Key Features

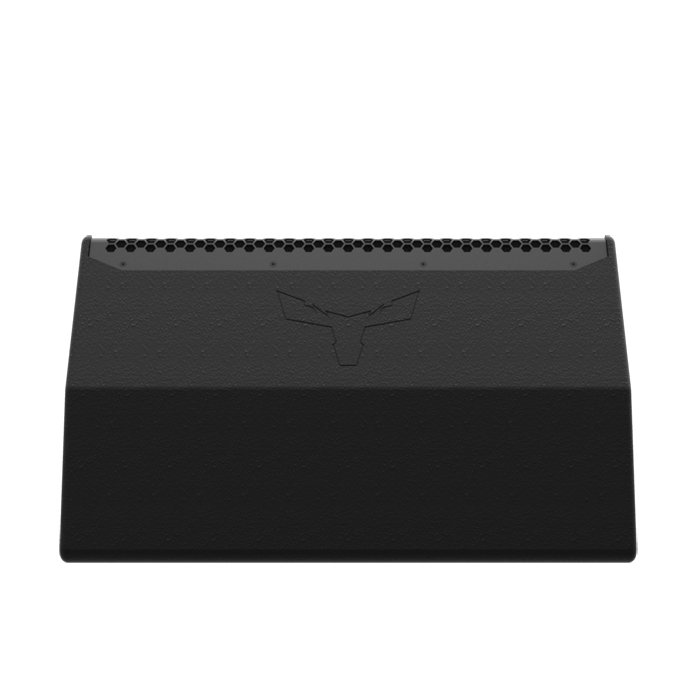

- Professional coaxial stage monitor
- 2-way passive version
- 15″ LF (4in) + 2.9″ HF voice coil European transducers
- Faithful dynamic response and great range
- Connector plate on the bottom with 2x Speakon NL4®
- Integrated Ø35mm pole mount socket
- Rugged and durable 15mm birch plywood construction
- Powder coated custom perforated steel grille
Tech Spec
| Type | Coaxial stage monitor – passive | |
| Enclosure Design | Bass reflex | |
| Power Output (RMS) | 400W / 80W (AES) 800W / 180W (Program) 1600W (Peak) | |
| Frequency Range | 80Hz – 20kHz | |
| Nominal Impedance | 8ohm | |
| Transducer Type | 12″ coaxial EU transducer LF 4in VC + HF 2.9in VC | |
| Dispersion | 80° Axisymmetrical (conical) | |
| Crossover Frequency | 1500Hz | |
| Max. SPL (peak) | 130dB @ 1m | |
| Connector | 2x Neutrik® NL4 in parallel | |
| Construction | 15mm birch plywood, textured polyurea coating | |
| Grille | Custom perforated metal grille w/ acoustic foam | |
| Installation / Rigging / Flying | 4 rubber feet Ø35mm pole mount socket | |
| Dimensions (WxDxH) | 610x540x360mm 24.01×21.26×14.17in | |
| Weight | 28Kg 61.73lb |
