Opis
Key Features
- Triac Dimmerpack
- 12-channel version (3000W per channel)
- 16 Amp circuit breakers on each channel
- DMX 512 and analog (DC 0-10 V) signal input
- Preheat rotative control (all channels) up to 50% output level
- DMX start address configurable with rotative switches

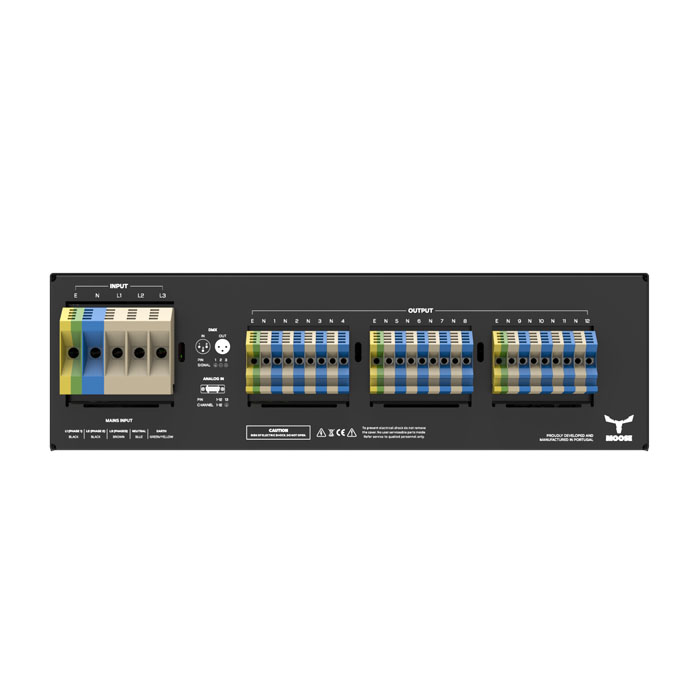

- Multiple output connector types (shuko, terminal and 16-pole harting)
- High quality inductors and filtering circuits
- Solid construction for 19” rack – 3U mounting
Tech Spec
| Type | Triac Dimmerpack | |
| No. of Channels | 12 | |
| Power Output (W) | 3000 | |
| Channel Output Rating | 16 Amps | |
| Load Type | Resistive and inductive | |
| Output Connector (S – Shuko) | Yes | |
| Output Connector (T – Terminal) | Yes | |
| Output Connector (H – Harting 16) | Yes | |
| Channel MCB Type | 1 pole | |
| Current Control Technology | Triac phase-controlled | |
| Indicators | DMX status, Phase status, Active outputs | |
| Inputs | DMX (XLR 3p), Analog (D15) | |
| Outputs | DMX (XLR 3P) | |
| Features | DMX patch addresser, Pre-heat | |
| Cooling Fan | Cont. speed fan, 80mm / 230V | |
| Fan Cooling Control | Thermal sensor | |
| Protections | Overload protection by M.C.B. | |
| Operating Voltage | 230V AC, 50~60 Hz | |
| Power Consumption | 260VA | |
| Dimensions (WxHxD) | 3RU spaces, 385mm depth | |
| Weight | 13Kg |
