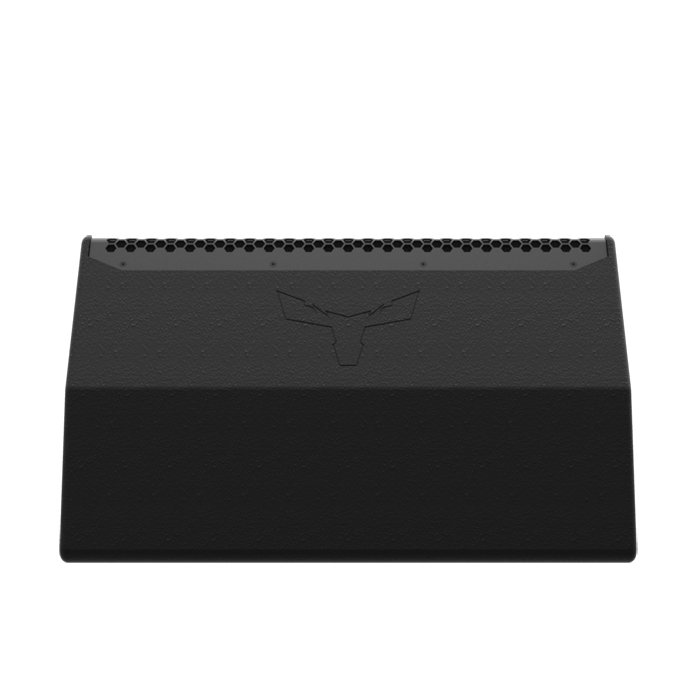

This SOUL CX15 monitor is equipped with an European transducer having the LF element a 4in voice coil combined with the HF 2.9in voice coil matching the curvilinear profile LF cone that provides smooth response within its intended frequency range and the integrated HF compression driver that has been designed to give smooth coherent wave front in the horn entrance in all working frequency range for a surprising performance.

Want a discount? Become a member!


Key Features

  • Professional coaxial stage monitor
  • 2-way passive version
  • 15″ LF (4in) + 2.9″ HF voice coil European transducers
  • Faithful dynamic response and great range
  • Connector plate on the bottom with 2x Speakon NL4®
  • Integrated Ø35mm pole mount socket
  • Rugged and durable 15mm birch plywood construction
  • Powder coated custom perforated steel grille

Tech Spec

TypeCoaxial stage monitor – passive
Enclosure DesignBass reflex
Power Output (RMS)400W / 80W (AES)
800W / 180W (Program)
1600W (Peak)
Frequency Range80Hz – 20kHz
Nominal Impedance8ohm
Transducer Type12″ coaxial EU transducer
LF 4in VC + HF 2.9in VC
Dispersion80° Axisymmetrical (conical)
Crossover Frequency1500Hz
Max. SPL (peak)130dB @ 1m
Connector2x Neutrik® NL4 in parallel
Construction15mm birch plywood, textured polyurea coating
GrilleCustom perforated metal grille w/ acoustic foam
Installation / Rigging / Flying4 rubber feet
Ø35mm pole mount socket
Dimensions (WxDxH)610x540x360mm
