Super-efficient class D technology amplifiers developed to deliver high output power and proven reliability for touring and portable applications. The DLINE series amplifiers are designed to meet the specialized needs of sound contractors. Four models have been developed to deliver high output power, wide dynamic range, low distortion, high efficiency and ease of use for a wide variety of sound reinforcement applications.

Want a discount? Become a member!


Key Features

  • High quality and reliable class D amplifier series
  • Classical PWM circuit design and new technology
  • 4x 500W @ 4ohm output power
  • 4x 600W @ 2ohm output power
  • XLR/F input connectors and Speakon 4p outputs
  • Modular design, no interference between channels

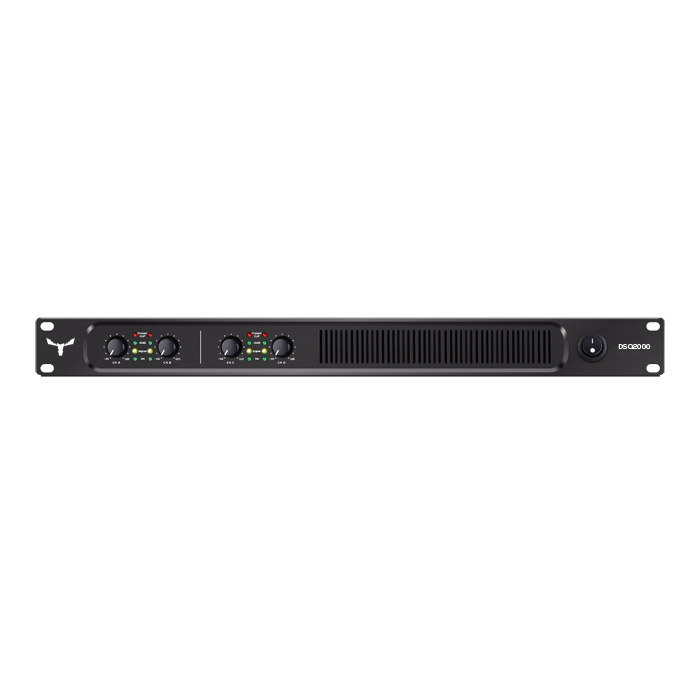

  • Front panel LEDs to monitor power, signal and clipping
  • Integrated protection circuitry to protect amplifier and speakers
  • Solid construction for 19” Rack – 1U lightweight enclosure

Tech Specs

TypeProfessional class D power amplifier
No. of Channels4
RMS Power @ 8Ω / 1kHz / 0.1% THD4x 350W
RMS Power @ 4Ω / 1kHz / 0.1% THD4x 500W
Frequency Range20Hz – 20kHz, ±0.3dB
T.H.D. (20Hz – 20kHz)< 0,3%
Damping Factor> 800 (8Ω, 20Hz~200Hz)
Crosstalk (20Hz – 20kHz)> 75dB
Signal-to-noise ratio> 105dB
Input Sensitivity20kΩ (balanced), 10kΩ (unbalanced)
ControlsMains switch (on/off), 4x volume
IndicatorsPower on: Green; Signal: Green;
Clip/Protect: Red (1 per channel)

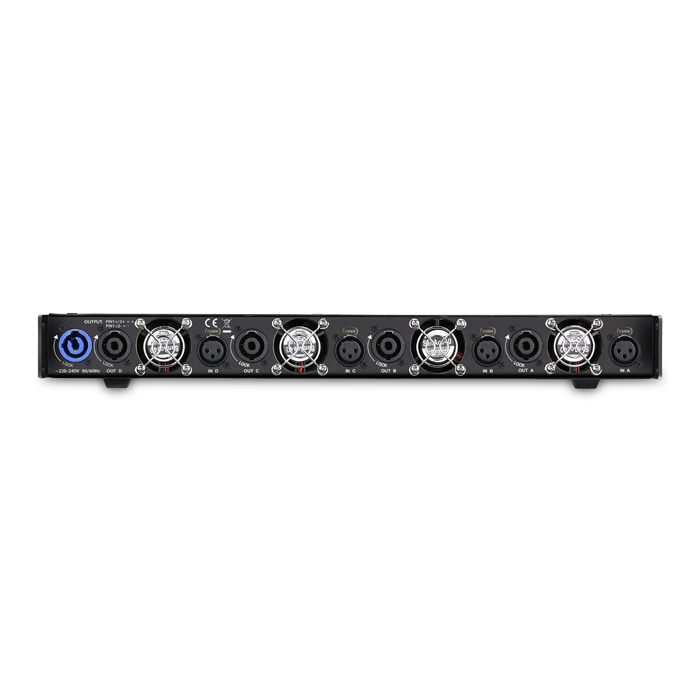

InputsXLR/F 3p connectors
OutputsSpeakon 4p connectors
ConnectorsPowerCON AC input
ProtectionsThermal overload, DC protection,
short circuit, clip limiter, temperature control
Operation Voltage220~240V AC (factory configured), 50–60 Hz
Power Consumption2000VA
CoolingContinuous speed fan, automatic
Dimensions (WxHxD)1RU space, 375mm depth (14.76in)
