DSP48W



Want a discount? Become a member!

Opis

Key Features

  • Professional 4-input, 8-output system processor
  • All inputs and outputs XLR 3p balanced connectors
  • High-end 24-bit AD/DA, 48 kHz converters
  • Gain, Parametric EQ, Shelving Filters, Time Delay
  • Crossover Filters (Butterworth, Linkwitz-Riley, Bessel), Compression, Limiting
  • USB port, RS 485 and RS232 for simple programming via PC
  • Friendly and intuitive control interface/app

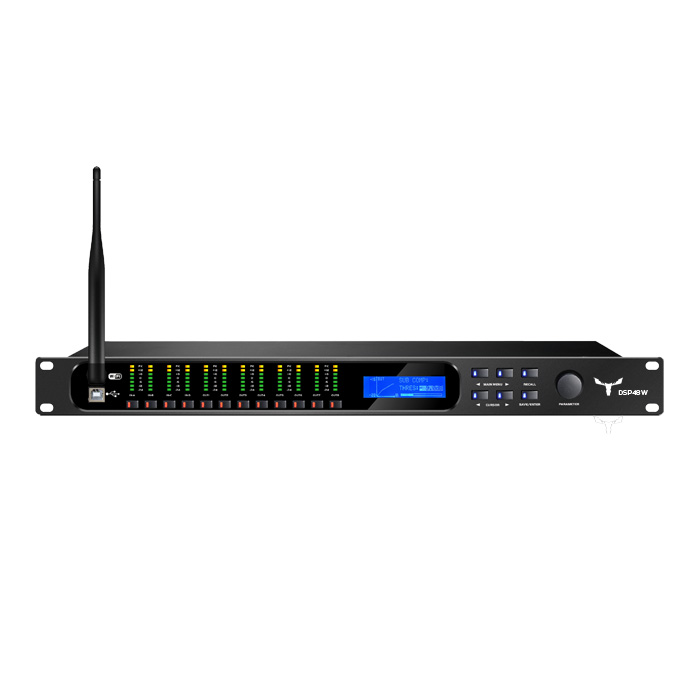

  • Convenient front-panel controls for parameter editing and input/output muting
  • 30 user-defined internal presets storable
  • Switch mode power supply: 90V – 250V AC
  • Solid construction for 19” Rack – 1U lightweight enclosure

Tech Specs

TypeProfessional audio system processor
Inputs4 (four)
Outputs8 (eight)

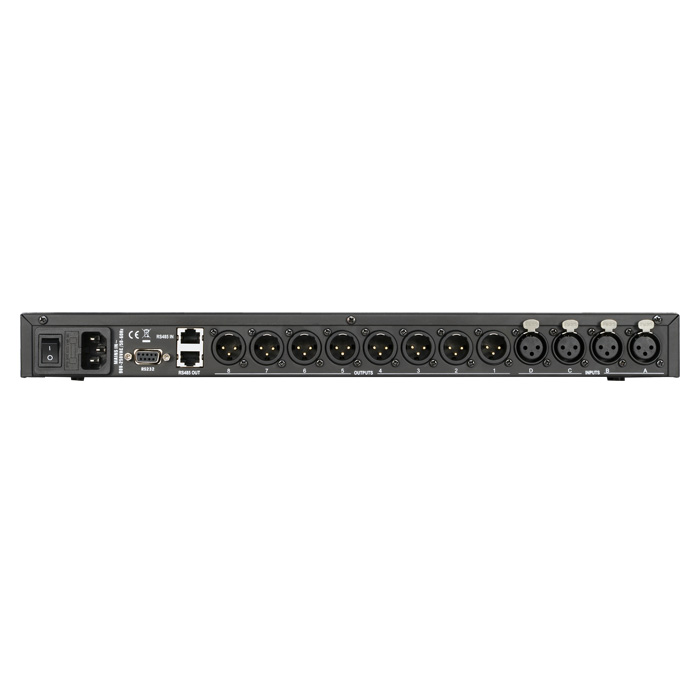

ConnectorsInput: XLR/F 3p balanced
Output: XLR/M 3p balanced
Other FeaturesExternal: USB Type-B (USB1.1)
Ethernet: RS 485 in/out
PC: RS 232
Other FeaturesWIFI controllable, compatible with Android, iOS and Windows
Other FeaturesInput impedance: 10kΩ
Output Impedance: 50Ω
Other FeaturesMax input/output level: 19dBu
Other FeaturesInput/output Gain: -40~12dB, 0,1dB step
Input/output Delay: 0ms~2s, step 21us
Other FeaturesInput/output PEQ: 9-band parametric EQ (1 per channel)
Other FeaturesEQ Gain: -30~15dB, step 0.1dB
EQ Type: PEQ, Low shelf, High shelf
EQ Frequency: 19.7~21.9kHz
EQ Banwith: PEQ 0.017~4.75 Oct
Other FeaturesCrossover frequency: 19.7~21.9kHz
Crossover Slope: FLAT THRU, 12dB, 23dB, 36dB, 48dB
Crossover classification: Butterworth, Bessel, Linkwitz-Riley
Crossover Threshold: -20dB~+20dB, step 0.5dBu
Other FeaturesCompressor ratio: 1.2,1.5, 2, 3, 4, 6, 10, 20, 40, 128:1
Other FeaturesAttack time: 1~100ms ,step 0.1ms
Release time: 50~1000ms, step 50ms
Other FeaturesDynamic Range: 112dB A Weighting
Other FeaturesCMMR: > 55dB (30Hz~20kHz)
Other FeaturesCrosstalk: < -100dB
Other FeaturesDistortion: 0.002% (1kHz, 0dBu)
Other FeaturesSystem preset: 10 appearances preset, 30 user programs
ControlsMains switch (on/off), MUTE push buttons
ConnectorsIEC 3p
Operation Voltage90~250V AC SMPS, 50–60 Hz
Dimensions (WxHxD)1RU space, 218mm depth (8.58in)
Weight3.6Kg
7.94lb

Dodatkowe informacje

Marka

MOOSE sound

Zastosowania

Instytucje kultury, Kluby muzyczne, Rental
