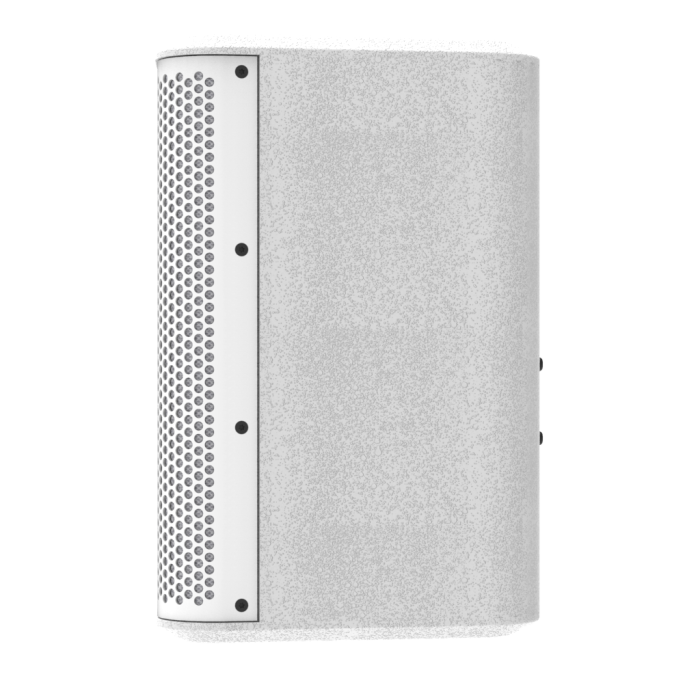

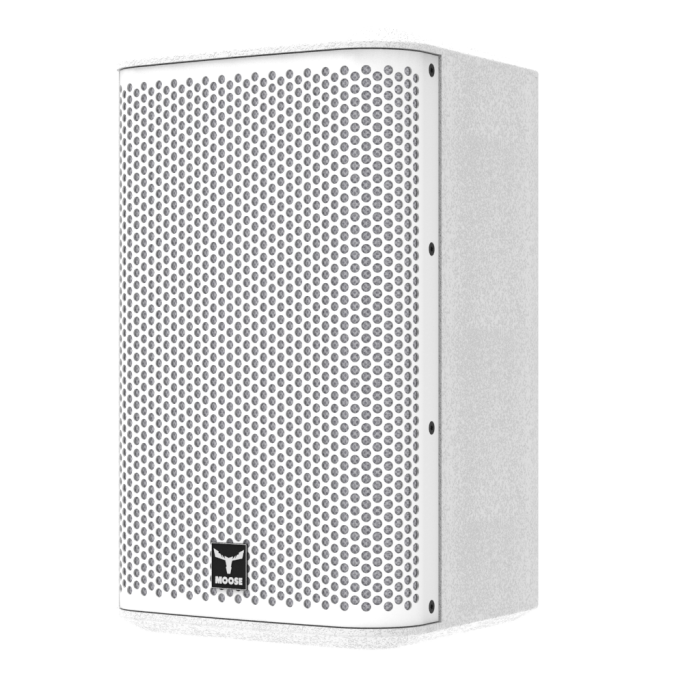

The Installation series speakers is the right choice to anyone that wants to install loudspeakers into a wall or into a ceiling matching the high quality sound requirements for modern indoor spaces. Extremely compact, accurate and good looking the 2-way speakers can also be complemented with a number of MOOSE subwoofer systems. This I8 incorporates high quality EU transducer combined with an extremely high sensitivity and lower distortion Kapton 1″ driver for outstanding detail and clarity in high frequencies without harshness.

Want a discount? Become a member!

Opis

Key Features

2-way passive installation speakers
Elegant, refined and lightness design
8″ (1.46in) FR EU transducer
High sensitivity 1″ HF Kapton driver
2x NL4 speakon + Euroblock terminal
Optional line transformer, 100V – 8ohm / 15W / 30W power taps
Prepared for wall/ceiling mounting, 4x M6 inserts for “U” bracket (supplied)
4x M5 inserts for Wall mount support adjustable in 2 axes (optional)
Ø35mm pole mount socket
Rugged and durable 12mm birch plywood

Tech Specs

Type		2-Way passive installation speaker
Enclosure Design		Bass reflex trapezoidal enclosure
Power Output (RMS)		170W (AES) 340W (Program)
Frequency Range		70Hz – 18kHz
Nominal Impedance		8Ohm
Transducer Type		8″ FR (1.46in) EU transducer High sensitivity 1″ HF Kapton driver
Dispersion		60°x40° (HxV)
Crossover Frequency		2200Hz
Max. SPL (peak)		118dB @ 1m
Connector		2x NL4MP speakon Euroblock speaker terminal I8T: 100V line transformer, 8ohm / 15W / 30W power taps
Construction		12mm brich plywood, black or white finishing

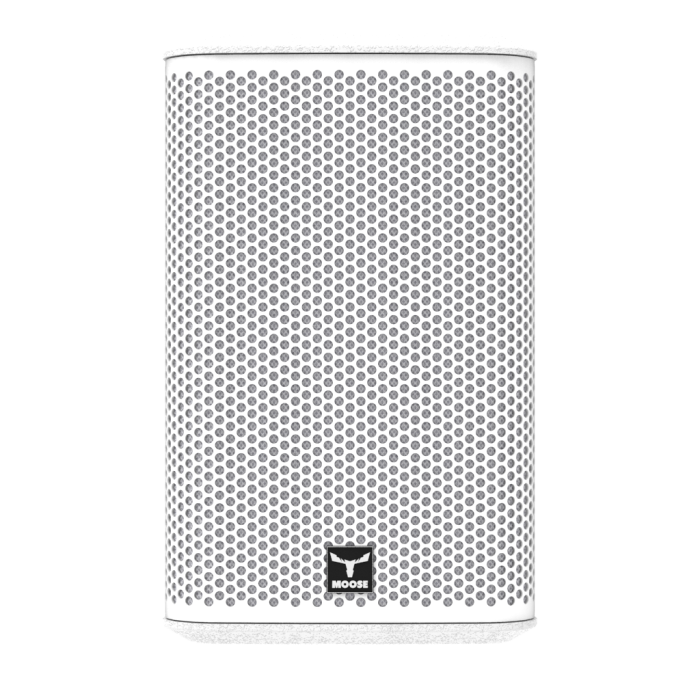

Grille		Custom perforated metal grille w/ acoustic foam

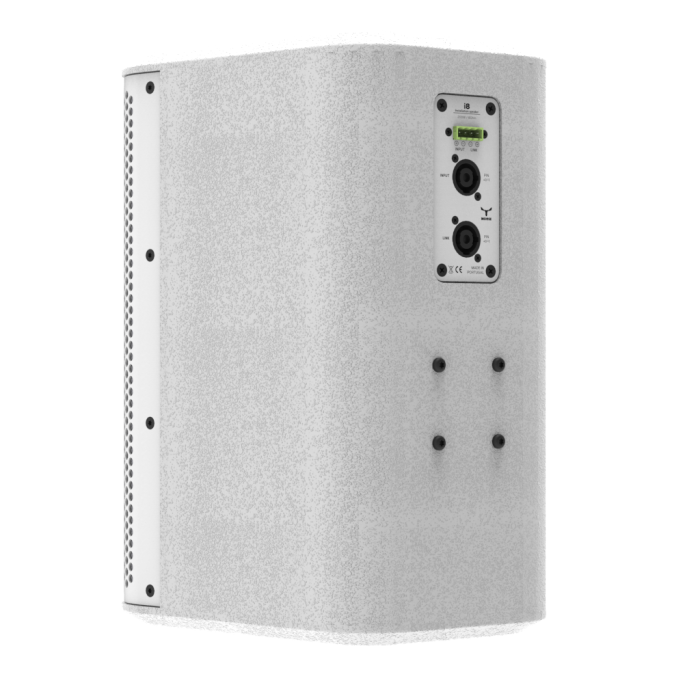

Installation / Rigging / Flying		Ø35mm pole mount socket 4x M6 inserts for “U” bracket (supplied) 4x M5 inserts for wall mount/ceiling support, 2-axes (optional)
Dimensions (WxDxH)		240x255x394mm 9.45×10.04×15.51in
Weight		8.0Kg 17.64lb

Dodatkowe informacje

Marka	MOOSE sound
Zastosowania	Instytucje kultury, Kluby muzyczne, Rental

Specyfikacja

Pobierz plik
