Key Features

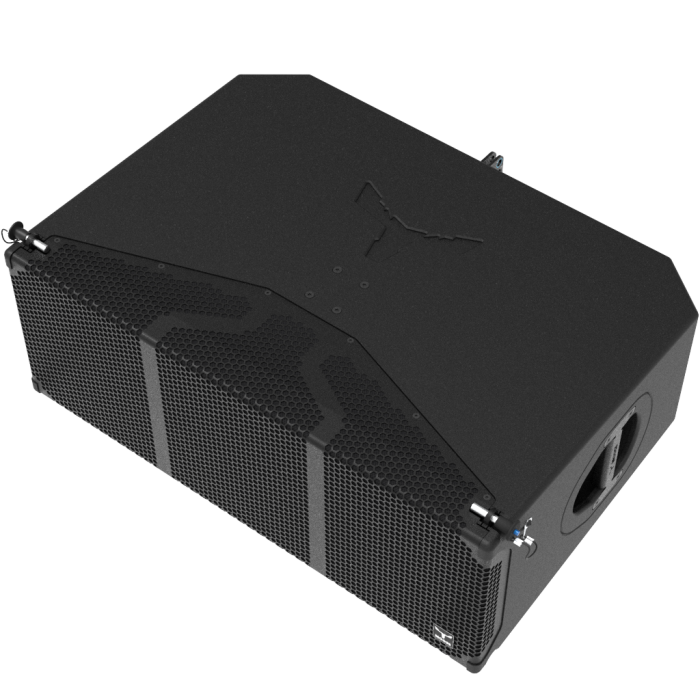

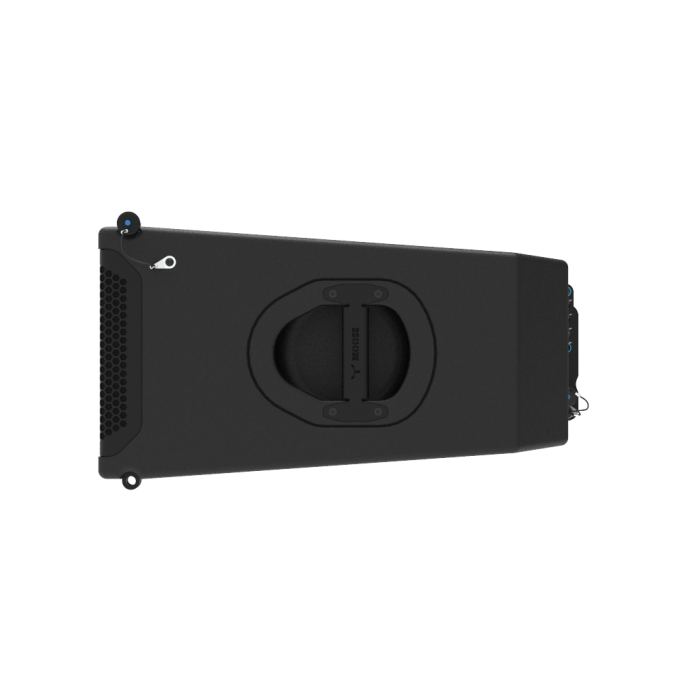

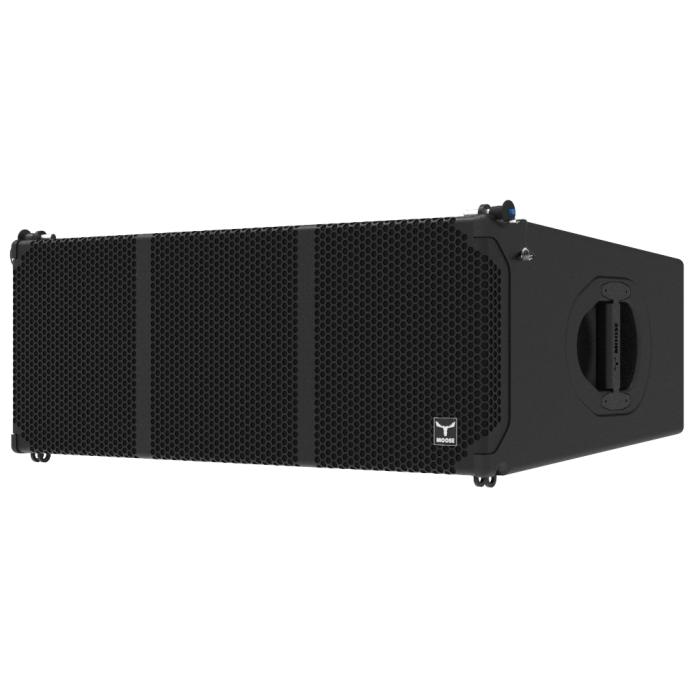

- Ultra-Compact 2-way curvilinear array module
- 2-way active version
- 2x 8” (2in VC) MF + 1.4” (2.56in VC) Neodymium HF driver
- Class D amplifier with integrated DSP, 4 selectable presets
- Universal 85-264Vac mains supply
- Faithful dynamic response and great range
- Integrated rigging system for stacked and flown configurations
- Rugged and durable 15mm birch plywood construction
- Powder coated custom perforated steel grille
Tech Specs
| Type | 2-way active line array element | |
| Enclosure Design | Trapezoidal array enclosure | |
| Power Output (RMS) | 500W (RMS) 800W (Program) 1600W (Peak) | |
| Frequency Range | 62Hz – 19,5kHz (-10dB) | |
| Nominal Impedance | N/A | |
| Transducer Type | 2x 8″ (2in VC) MF EU transducer 1.4″ (2.56in) Neodymium HF EU transducer | |
| Dispersion | Horizontal: 100° Vertical: array length-splay dependent | |
| Crossover Frequency | DSP controlled with selectable presets 48KHz sampling frequency 24 bit AD/DA converter | |
| Max. SPL (peak) | 128dB @ 1m | |
| Amplifier type | Class D, 2 channel amplifier | |
| Amplifier output | 800W + 400W (continuous) | |
| Input | XLR/jack combo connector | |
| Output | XLR/M 3p | |
| Indicators | Power, signal/preset, clip | |
| Controls | Master level control, 4 selectable presets | |
| Feature | Cooling by convection | |
| AC Power Supply | Switching power supply, 85-264Vac | |
| AC mains connector | Neutrik® powerCON, Power-in (blue) / Power-out (grey) | |
| Protection | Over current and short circuit protection, thermal protection, DC output protection and HF protection (amplifier) | |
| Construction | 15mm brich plywood, rugged polyurea coating | |
| Grille | Custom perforated metal grille with protective foam | |
| Installation / Rigging / Flying | Integrated rigging flyware Splay angle adjustable, 8° (1° increments) Ø9.8mm ball pins w/ stainless steel lanyard with PVC | |
| Dimensions (WxDxH) | 640x480x235mm 25.19×18.89×9.25in | |
| Weight | 27Kg 59.52lb |
