MPS15

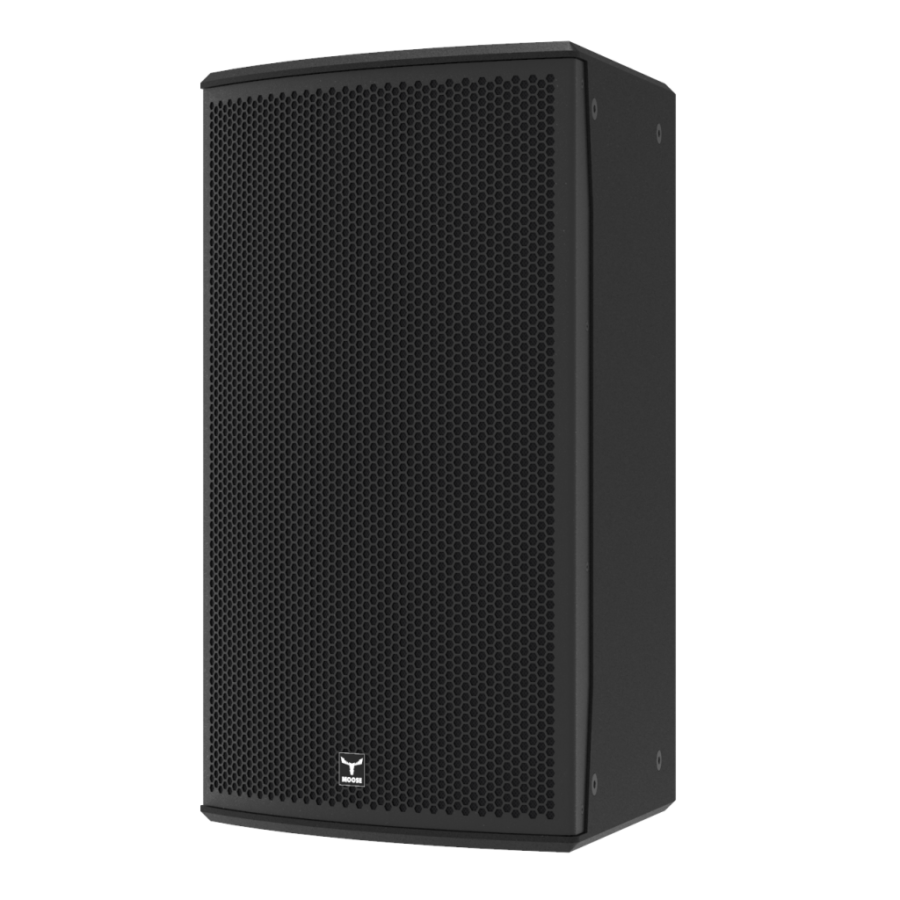

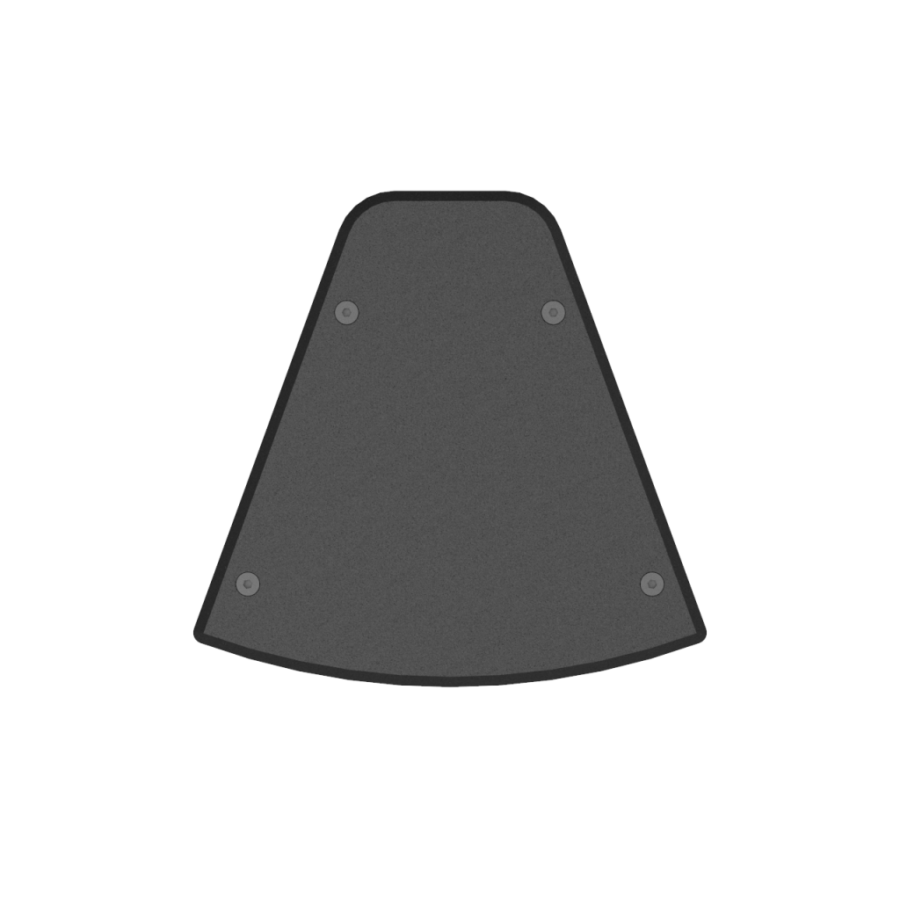

The MPS15 consists of a trapezoidal enclosure housing a high excursion 12″ reflexloaded low frequency woofer that combines excellent linearity, good efficiency and high power handling. The HF section consists of one large format 1.4″neodymium compression driver mounted on a rotatable constant coverage composite horn which provides a 90° H by 60° V dispersion pattern to obtain a smooth frequency response maintaining constant coverage and directivity pattern.

Want a discount? Become a member!

Opis

Key Features

  • Modular Point Source Element
  • Ultra Compact, high-efficiency and elegant trapezoidal enclosure
  • 15” MF (3in VC) high excursion EU transducer
  • 1.4” HF (2.56in VC) neodymium EU compression driver
  • 2x NL4 parallel-connected
  • Bi-amp operation, user-selectable
  • User-rotatable CD horn 90°x60° for ideal dispersion
  • M10 rigging points for vertical and horizontal installation
  • Rugged and durable 15mm birch plywood
  • Up to 4 modules can be set up for both Vertical or Horizontal clusters
  • Suited for FOH, Out-fill, In-fill, Worship spaces
  • Expandable with subs for a powerful front PA

Tech Specs

Type2-Way modular point source speaker
Enclosure DesignBass reflex trapezoidal enclosure
Power Output (RMS)600W (RMS)
850W (Program)
2200W (Peak)
Frequency Range49Hz – 19kHz (-10dB)
Nominal Impedance8Ohm
Transducer Type15″ Neodymium MF (3in VC) EU transducer
1.4″ Neodymium HF (2.56in VC) EU transducer
DispersionCD horn, 90°x60° and 60°x90°
User-rotatable
Crossover FrequencyPreset dependent
Bi-amp operation, user-selectable
Max. SPL (peak)133dB @ 1m
Connector2x NL4 parallel-connected
Bi-amp switch
Construction15mm birch plywood, textured polyurea coating
GrilleCustom perforated metal grille with acoustic foam
Installation / Rigging / Flying8x M10 flying points
Horizontal flybar, FH-MPS15
Horizontal coupling bar, BH-MPS15
Vertical flybar, FV-MPS15
Dimensions (WxDxH)435x420x710mm
17.13×16.54×27.95in
Weight26Kg
57.32lb

Dodatkowe informacje

Marka

MOOSE sound

Zastosowania

Instytucje kultury, Kluby muzyczne, Rental

Specyfikacja

Pobierz plik
