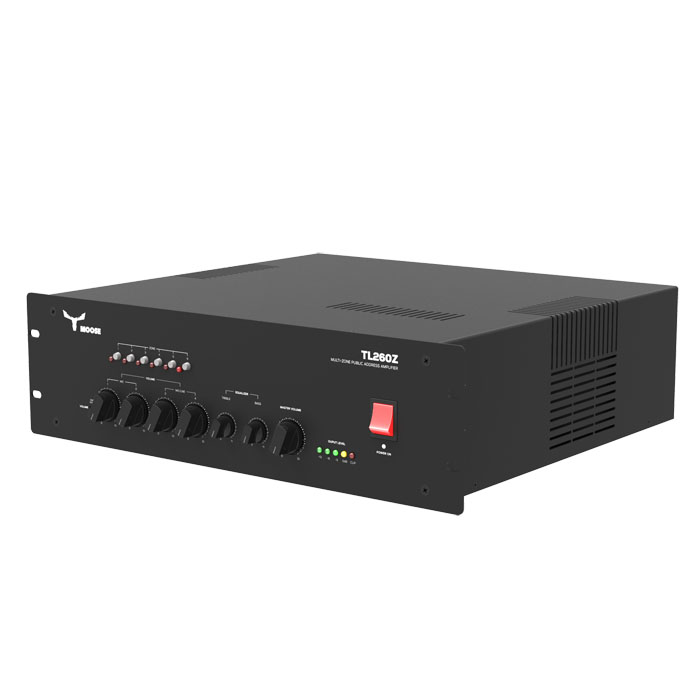

TL 260Z

Public address amplifier with a power up to 300W rms. The TL260Z offers a variaity of input possibilities for all kinds of connection purposes such as 4 balanced MIC inputs, 2 stereo line inputs which are switchable between MIC/LINE level and a priority MIC input (with ding-dong) performed using a 5-pin DIN connector. The output signal is available in low impedance 4-16Ohm and high impedance 100V mono output zones with terminal blocks on the rear panel and the TL260Z also features a REC and SLAVE (pre-amp) outputs in RCA connector. All control functions such as volume controls, master volume control, channel selection and a 2-band tone control are located on the front panel. It is equipped with an advanced protection circuit which protects against DC short circuit and overload when necessary.

Want a discount? Become a member!

Opis

Key Features

  • High quality PA amplifier
  • Multizone installation PA mixer-amplifier
  • 4 Microphone inputs and 1 Line input
  • XLR 3p balanced, Euroblock inputs
  • 4-16 ohm & constant-voltage outputs (70V and 100V)
  • Independent zone control switches (six)
  • Bass and Teble tone controls
  • Ding-dong and Priority muting by VOX
  • Built-in electronic protection circuitry
  • Solid construction for 19” rack – 3U mounting

Tech Specs

TypeMultizone PA mixer/amplifier
Power Output (RMS)260W
Frequency Range50Hz – 15kHz
T.H.D. (20Hz – 20kHz)< 1% @ 1kHz
Signal-to-noise ratio> 90 dB @ 1 kHz
Zones6 zones

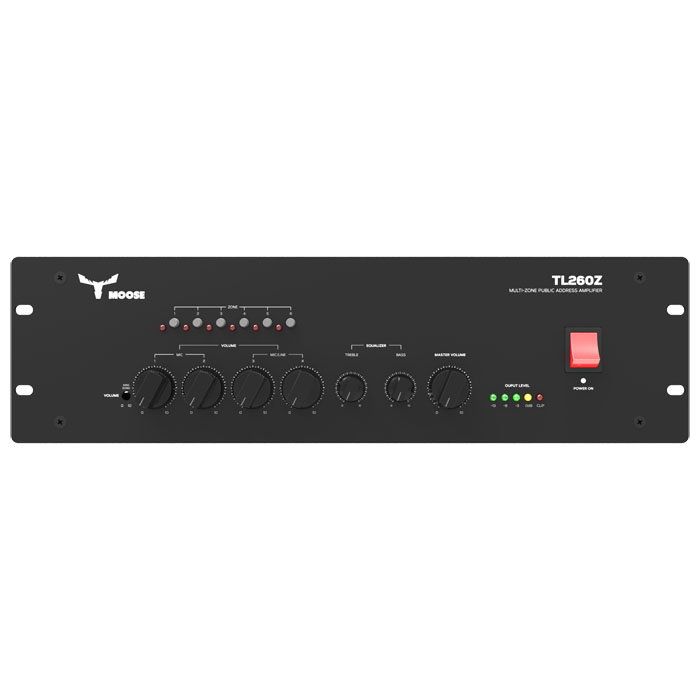

ControlsBass and Treble, Master, Volume for MIC and Line in
IndicatorsPower on, Signal and Clip, Active zone
InputsMicrophone, XLR/F 3p
Euroblock terminals
Line in

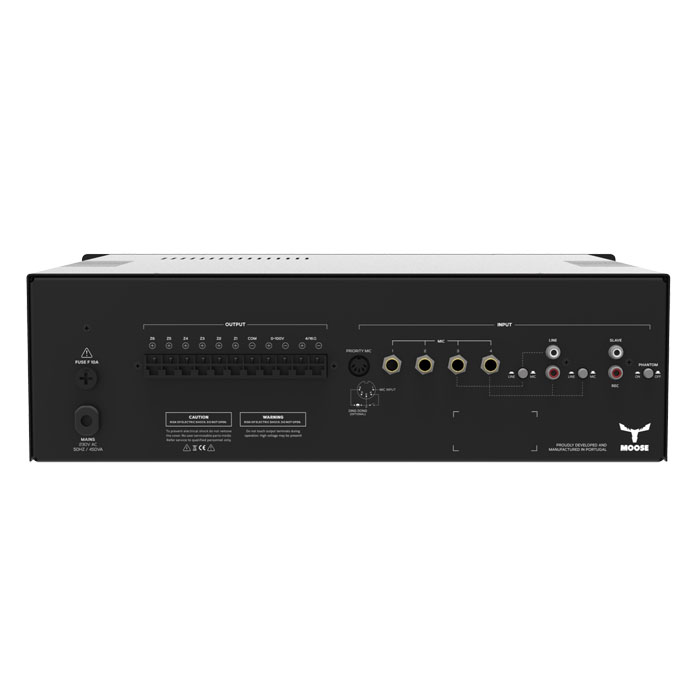

Outputs4Ω- 16Ω, 100V line, REC
ConnectorsInput: 6.3mm Jack, RCA line
Output: Touch-proof binding posts
Phantom Power+48V DC
Other FeaturesDing-dong, priority MIC, MIC3/LINE3 and MIC4/LINE4 switch
ProtectionsShort circuit, DC protection
Operation Voltage230V AC (factory config.), 50–60 Hz
Power Consumption260VA
CoolingContinuously speed fan, 120mm / 230V AC
Dimensions (WxHxD)3RU spaces, 345mm depth (13.58in)
Weight16Kg
35.27lb

Dodatkowe informacje

Marka

MOOSE sound

Zastosowania

Instytucje kultury, Kluby muzyczne, Rental

Specyfikacja

Pobierz plik
