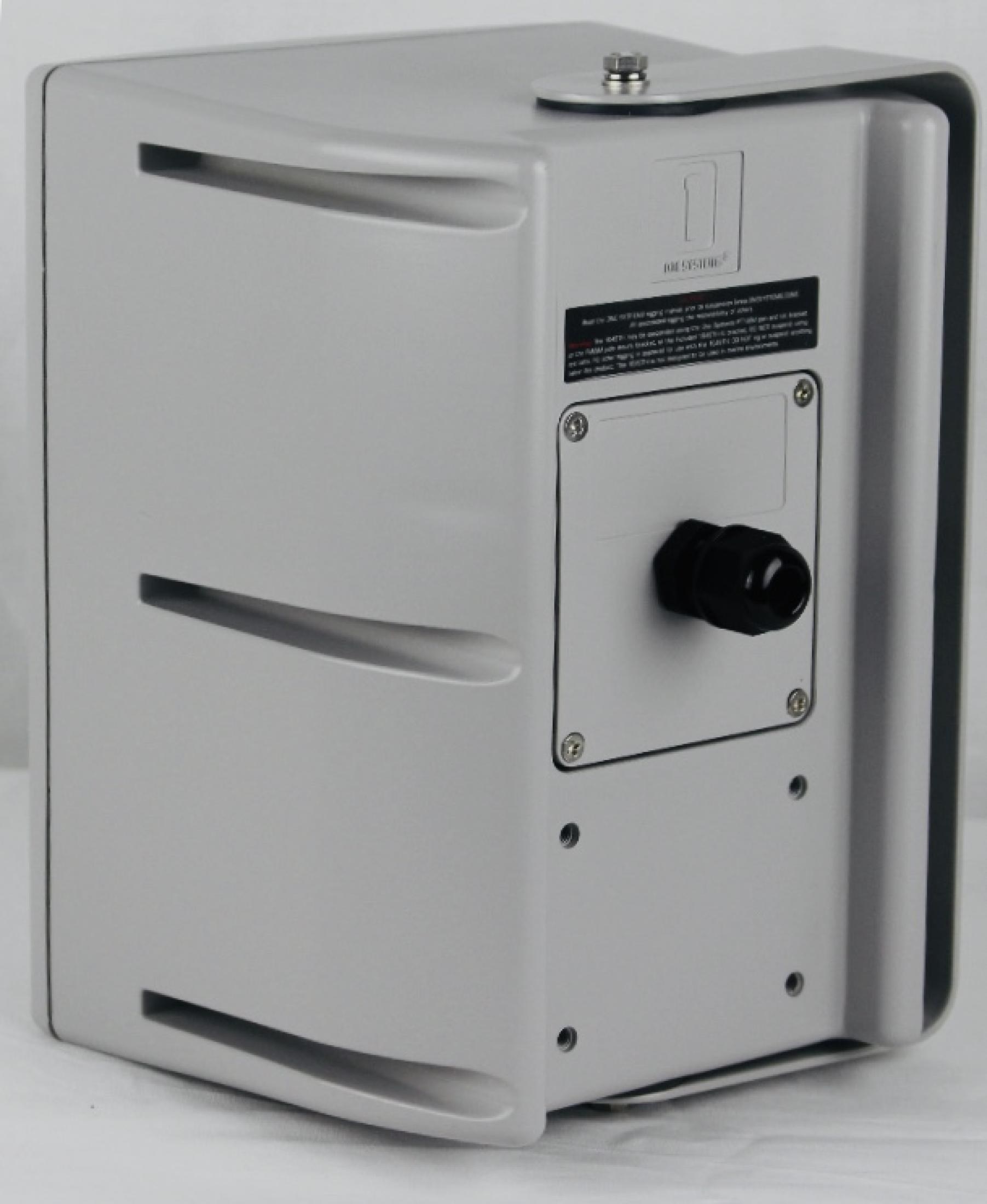

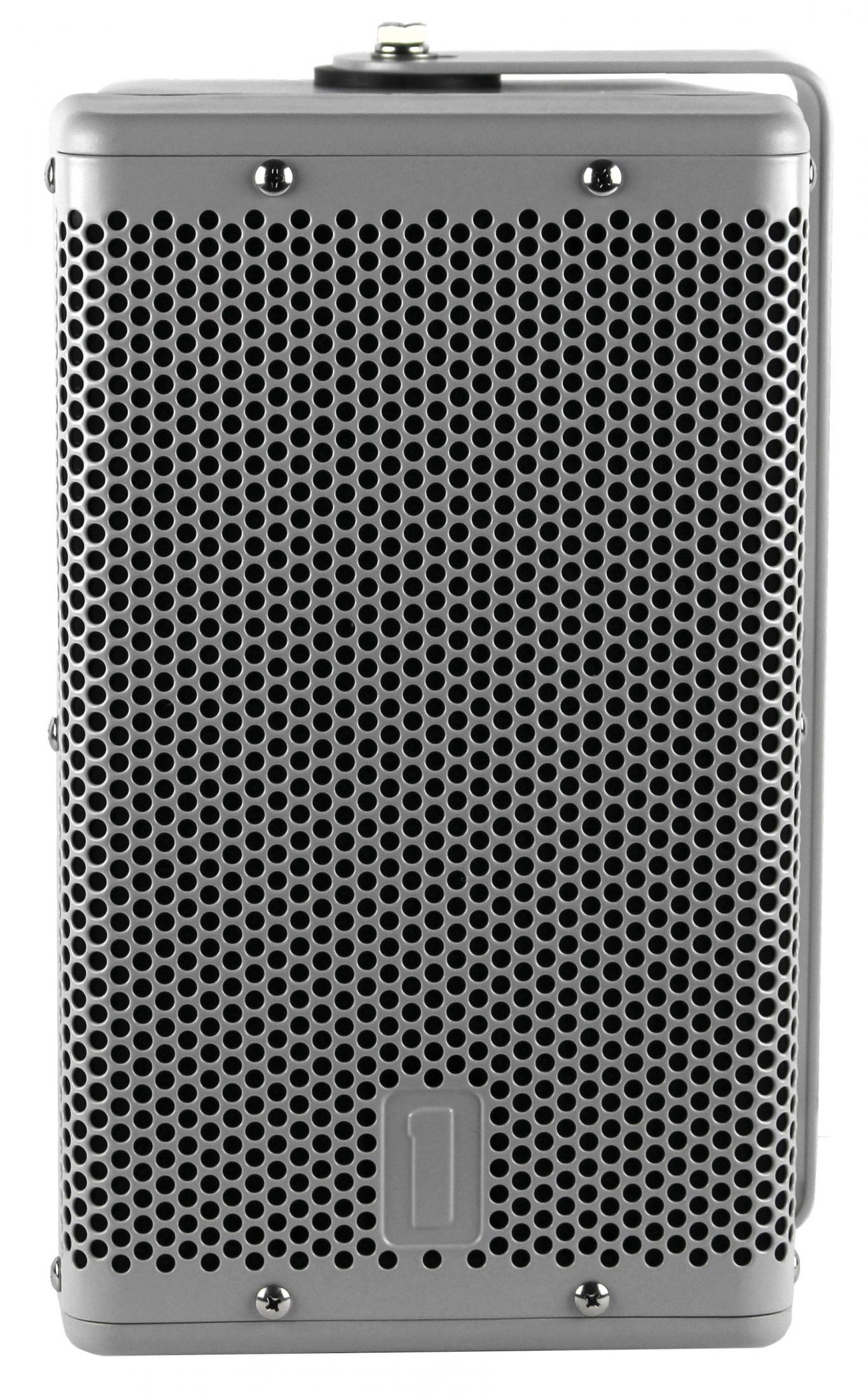

The One Systems 106.STH™ is a premium-grade 6.5″ two-way loudspeaker suitable for indoor and outdoor professional audio applications where high intelligibility and accuracy are required.


Want a discount? Become a member!


106.STH Silver Series Loudspeakers

The system’s direct-radiating transducers include a 6.5″ woofer with a large-sized voice coil that provides high reliability and excellent linearity. Its HF section utilizes a small-format compression driver with a Low-Q 110o x 70o waveguide. The 106.STH is installer-configurable for Lo-Z (8 ohm) or Hi-Z (70.7 / 100 volt) operation using separate input barrier strips. The 106.STH’s rugged thick-walled enclosure, specially-built components and its stainless steel rigging hardware ensures long life in direct weather applications. The 106.STH U-Bracket is comprised of structural steel with a zinc powder coating. Wall and pole mount pan/tilt brackets are available for added installation flexibility.

U-Bracket is included as standard


  • Frequency Response: 90Hz-20kHz
  • Coverage Pattern: 110 (H) x 70 (V)
  • Crossover Frequency: 1.5kHz
  • System Sensitivity 1w/1m: 87dB
  • Power Handling: 80w
  • Input Impedance (Lo Z): 8
  • Input Taps (Hi Z): 50/25/12.5w
  • Weight: 5.2kg, 11.4 lbs
  • Size (mm): 312 x 185 x 217.1 (Not including U-Bracket)
  • Size (Inches): 12.3 x 7.3 x 8.5 (Not including U-Bracket)
