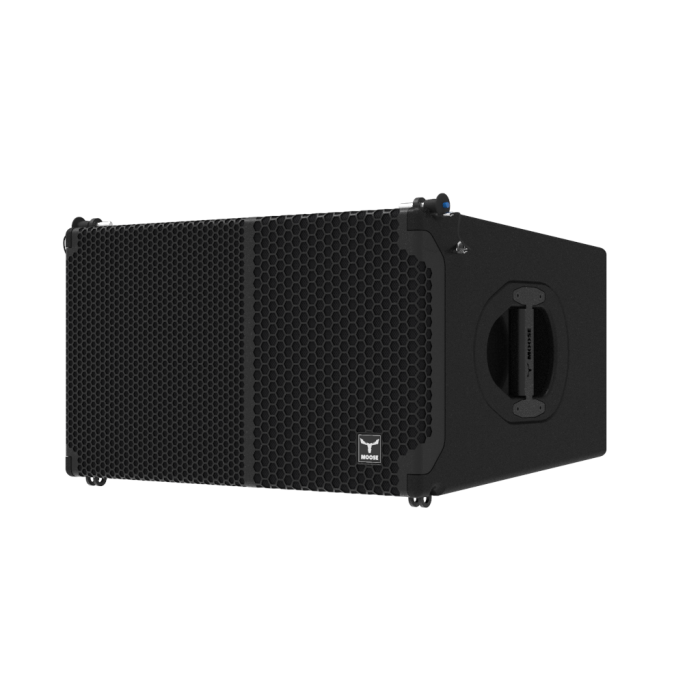

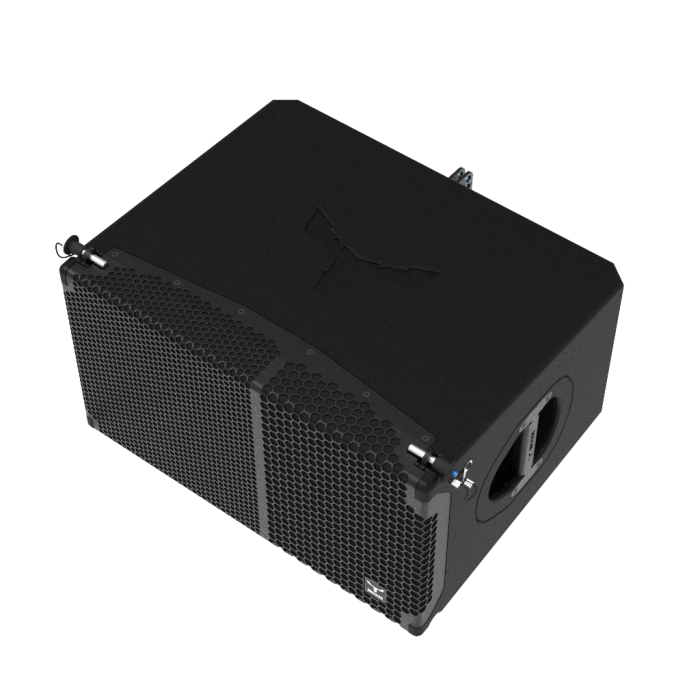

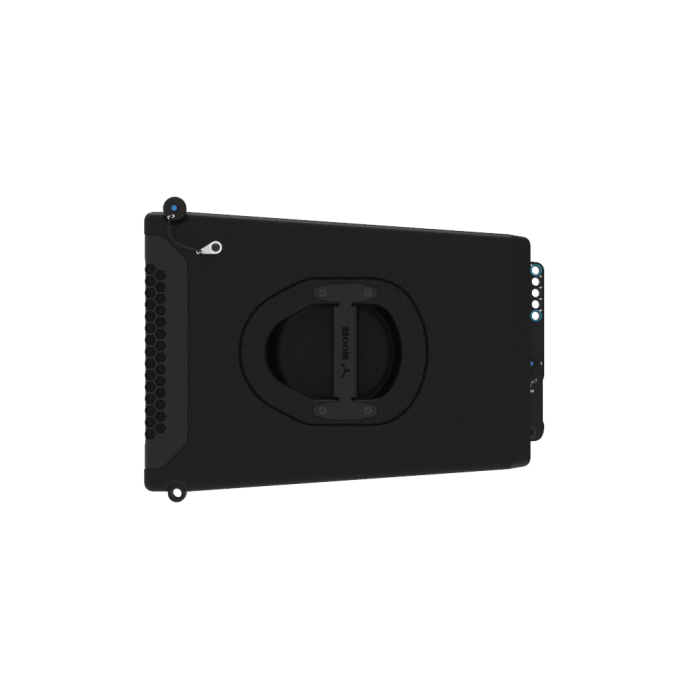

LA10

Compact vertical line array element designed to provide high performance, detailed highs and a well-defined midrange. The LA10 is a front loaded enclosure that features an internal passive crossover, prepared for bi-amp operation, having built-in premium quality EU transducers (1x 10″ – 3in VC) and 1x 1.4″ – 2.56 VC Neodymium HF drivers, both combinations ensuring powerful and crystal clear reproduction, high SPL with an extended frequency response. The MF/HF pattern control is array splay dependent thus offering a coverage of 100°x7° (HXV) thanks to true wave guide horn that ensure consistent and long range projection with very low distortion levels.

Want a discount? Become a member!

Opis

Key Features

  • Front loaded array element, passive
  • Trapezoidal enclosure
  • 10″ MF (3in VC) + 1.4″ HF NEO (2.56in VC) EU transducers
  • 2x NL4 connected in parallel
  • Bi-amp operation
  • High performance and crystal clear reproduction
  • Faithful dynamic response and great range
  • Integrated rigging system for stacked and flown configurations
  • Rugged and durable 15mm birch plywood construction
  • Powder coated custom perforated steel grille

Tech Specs

Type2-way line array element
Enclosure DesignTrapezoidal array enclosure
Power Output (RMS)600W (RMS)
780W (Program)
1500W (Peak)
Frequency Range85Hz – 20kHz (-10dB)
Nominal Impedance8Ohm
Transducer Type10″ MF (3in VC) EU transducer
1.4″ HF NEO (2.56in) EU transducer
DispersionHorizontal: 100°
Vertical: 7°
Crossover Frequency1600Hz
Bi-amp operation, user-selectable
Max. SPL (peak)128dB @ 1m
Connector2x NL4 in parallel
Construction15mm brich plywood, rugged polyurea coating
GrilleCustom perforated metal grille with acoustic foam
Installation / Rigging / FlyingIntegrated rigging flyware
Splay angle adjustable, 8° (1° increments)
Ø9.8mm ball pins w/ stainless steel lanyard with PVC
Dimensions (WxDxH)540x430x310mm
21.60×16.93×12.20in
Weight22Kg
48.50lb

Dodatkowe informacje

Marka

MOOSE sound

Zastosowania

Instytucje kultury, Kluby muzyczne, Rental

Specyfikacja

Pobierz plik
