Opis
Key Features

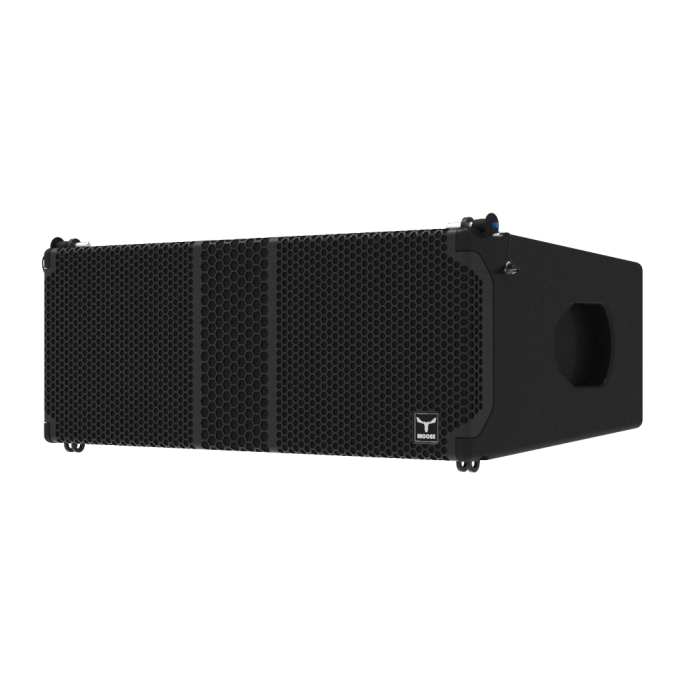

- Front loaded array element, trapezoidal enclosure
- 2-way active version
- 8″ (2in VC) MF front loaded + 8″ (2in VC) MF horn loaded
- 2x 1″ (1in) HF European transducers
- Class D amplifier with integrated DSP
- Universal 85-264Vac mains, SMPS
- Faithful dynamic response and great range
- Integrated rigging flyware for stacked and flown configurations
- Rugged and durable 15mm birch plywood construction
- Powder coated custom perforated steel grille
Tech Specs
Type | 2-way ACTIVE line array element | |
Enclosure Design | Trapezoidal array enclosure | |
Power Output (RMS) | 500W (RMS) 960W (Program) 1400W (Peak) | |
Frequency Range | 80Hz – 18kHz (-10dB) | |
Nominal Impedance | N/A | |
Transducer Type | 8″ MF (2.0in) EU transducer, front loaded 8″ MF (2.0in) EU transducer, horn loaded 2x 1″ HF (1.0in) EU transducer | |
Dispersion | Horizontal: 100° Vertical: 7° | |
Crossover Frequency | DSP controlled with selectable presets 48KHz sampling frequency 24 bit AD/DA converter | |
Max. SPL (peak) | Passive: 124dB (continuous), 130dB (peak) LF + MF: 125dB (continuous), 132dB peak HF: 124dB (continuous), 131dB (peak) | |
Amplifier type | Class D, 2 channel amplifier | |
Amplifier output | 800W + 400W (continuous) | |

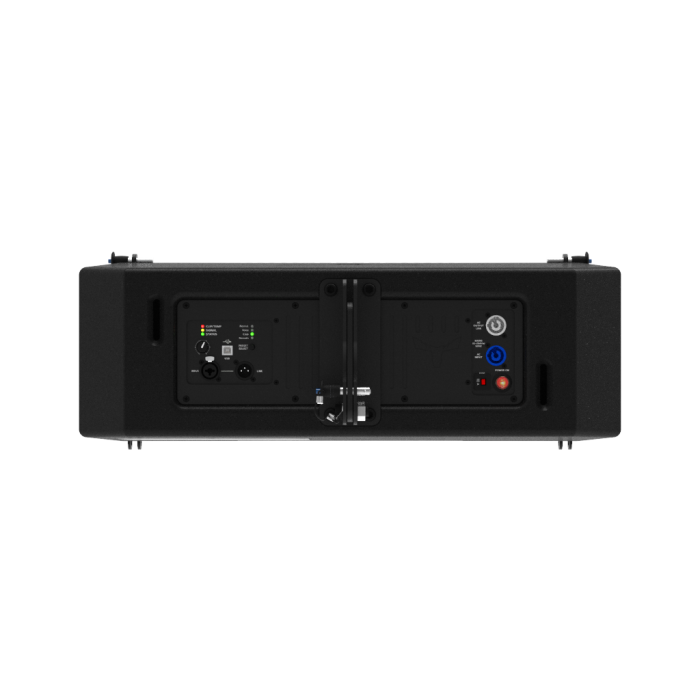

Input | XLR/jack combo connector | |
Output | XLR/M 3p | |
Indicators | Power, signal/preset, status, clip | |
Controls | Master level control, 4 selectable presets | |
Feature | Cooling by convection | |
AC Power Supply | Switching power supply, 85-264Vac | |
AC mains connector | Neutrik® powerCON, Power-in (blue) / Power-out (grey) | |
Protection | Over current and short circuit protection, thermal protection, DC output protection and HF protection (amplifier) | |
Construction | 15mm brich plywood, rugged polyurea coating | |

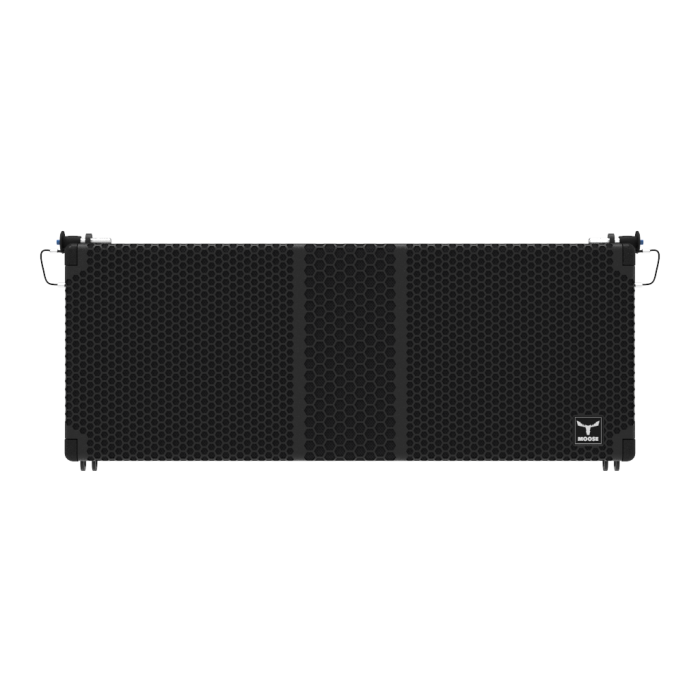

Grille | Custom perforated metal grille with protective foam | |

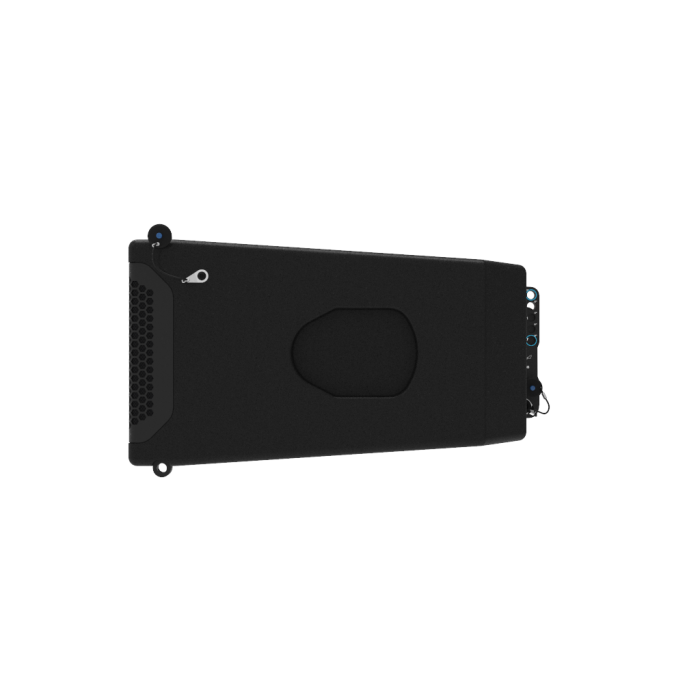

Installation / Rigging / Flying | Integrated rigging flyware Splay angle adjustable, 8° (1° increments) Ø9.8mm ball pins w/ stainless steel lanyard with PVC | |
Dimensions (WxDxH) | 640x435x245mm 25.19×17.13×9.65in | |
Weight | 26Kg 57.32lb |
